Viscosity and Temperature: Their Impact on Resin 3D Printing
Resine-3D Technical Guide
Viscosity and Temperature: Their Impact on Resin 3D Printing
Why resin viscosity and working temperature influence adhesion, drainage, support reliability, layer quality, and print consistency.

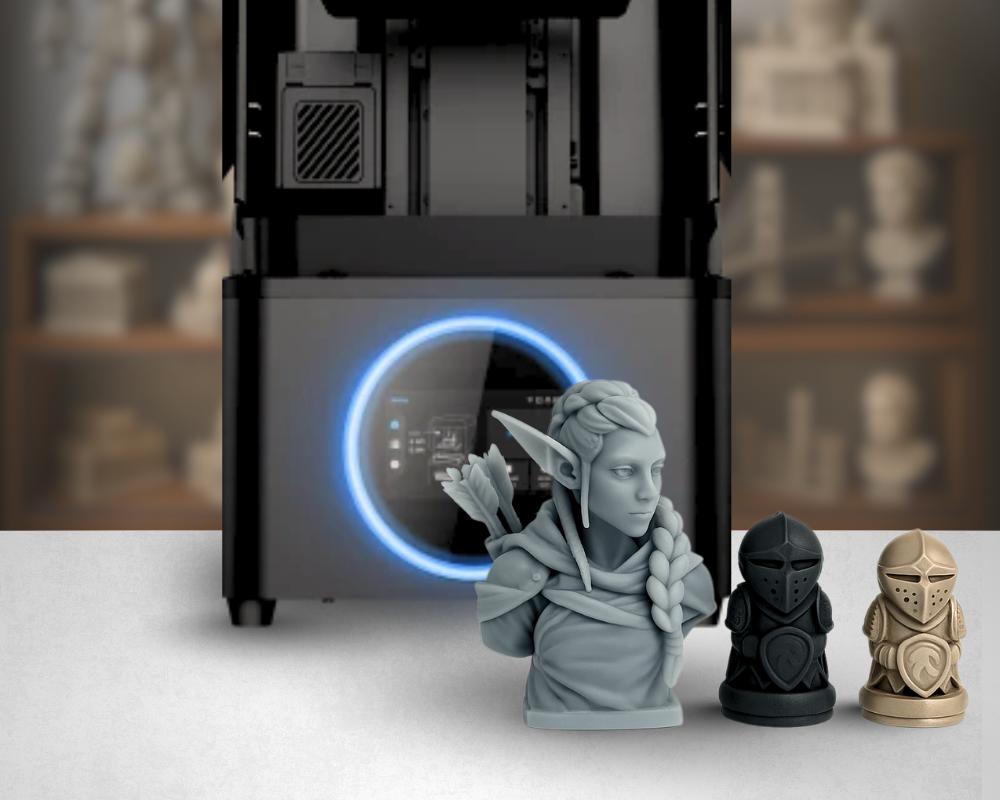

Standard resin bottles for LCD and DLP 3D printing
Two resins exposed with the same UV time can behave very differently if their viscosity is different. A fluid resin refreshes quickly between layers; a filled or cold resin flows more slowly, increases peel forces, and can cause filling defects, suction problems, or surface irregularities.
Key Takeaways
- Temperature directly affects viscosity.
- A cold resin increases peel forces and support stress.
- Filled resins often need more rest time, better drainage, and regular mixing.
Why Viscosity Matters
In LCD, DLP, or SLA printing, each layer must be formed from a fresh and uniform resin film. If resin does not flow back under the part quickly enough, some zones may lack material or receive an inconsistent optical dose. The result can be orange peel texture, layer lines, loss of detail, or broken supports.
| Situation | Process risk |
| Cold resin | Slow flow and higher peel forces |
| Highly filled resin | Sedimentation and less uniform exposure |
| Large solid cross-section | Suction and drainage issues |
| Closed cavities | Trapped liquid resin |
| Fast lift speed | Tearing or elastic deformation |
Working Temperature
Most resins print more consistently in a stable workshop environment. If the resin is too cold, previously validated profiles can become unreliable. It is not enough to warm the room air; the bottle and vat resin also need time to reach a uniform temperature.
Avoid thermal shock and never heat a resin outside the limits of its safety and technical datasheet. The goal is stable process temperature, not maximum heat.
Adjusting the Print Profile
With a more viscous resin, it can help to increase rest time before exposure, slow down lift speed, or increase lift distance. These changes allow resin to redistribute and reduce stress on supports.
Warning Signs
- Supports break even though exposure seems correct.
- Large horizontal areas show missing or weak layers.
- Color is marbled or inconsistent.
- Details are sharp early in the print but softer later.
- The printer makes unusual peel sounds or shows unusual resistance.
Viscosity is not just a datasheet value. It is a production variable. Managing it reduces failures, especially with technical, dental, flexible, or heavily filled resins.
Before publishing, adapt these recommendations to the resin datasheet, printer model, validated profile, and real workshop conditions.
