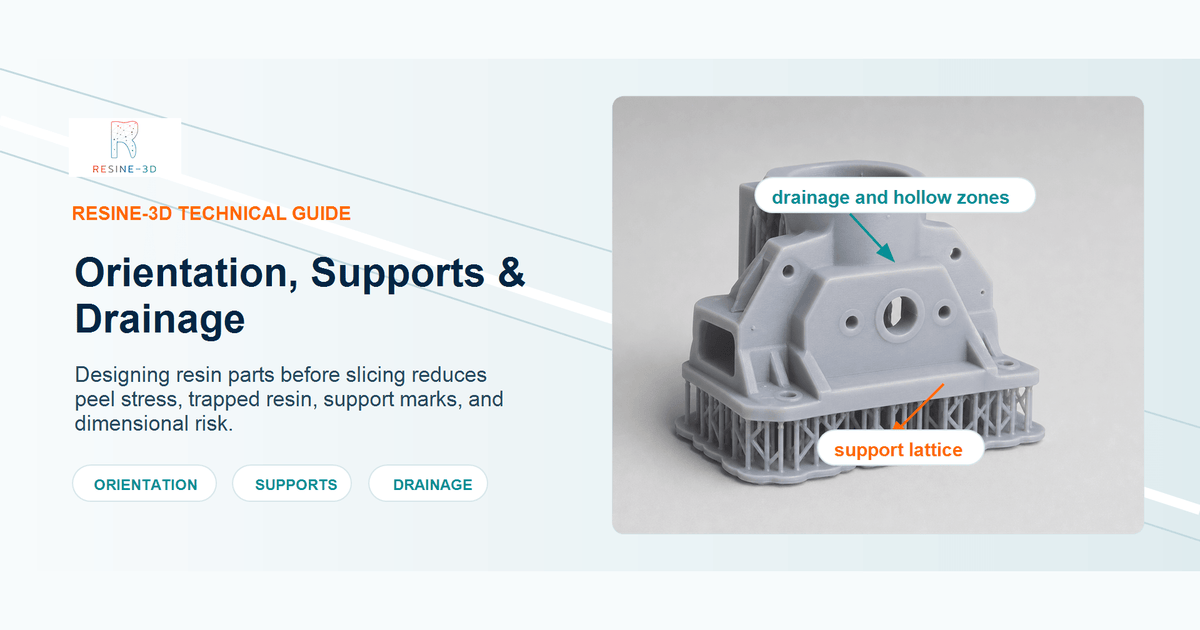

Orientation, Supports, and Drainage: Designing Parts for Resin Printing
Design rules that reduce resin printing failures: orientation, support placement, cavities, drainage holes, and functional surfaces.
In resin printing, a successful part does not depend only on the resin or printer. Geometry determines peel forces, trapped liquid, support marks, and final accuracy. Designing for resin additive manufacturing means thinking about layers, drainage, and finishing before slicing.
Key Takeaways
- Protect functional surfaces from support marks.
- Avoid large solid cross-sections parallel to the vat.
- Add drainage holes to hollow parts.
Orientation: Finding the Right Compromise
A vertical orientation often reduces the exposed area per layer but increases print time. An angled orientation can reduce suction and visible stepping while moving supports to less critical areas. The goal is not always to use fewer supports; it is to place marks where they are acceptable.
| Orientation choice | Advantage | Watch out for |
| Critical surface facing up | Fewer support marks | Possible deformation depending on cross-section |
| Angled part | More progressive peeling | More supports to remove |
| Vertical part | Small layer area | Longer print time |
| Flat part | Fast | Suction, elephant foot, dimensional risk |
Supports: Density, Tip Size, and Contact Zones
Supports must hold the part during peeling without destroying the finish. For functional parts, it is often better to use more controlled contact points on non-visible or non-toleranced areas. Islands must be supported before they first appear, otherwise they float in the resin and create defects.
Drainage for Hollow Parts
A hollow part without drainage holes traps liquid resin and creates suction. Add at least two openings: one for air entry and one for resin evacuation. The diameter must be large enough for resin to flow out and for internal washing to be effective.
Internal cavities also need post-curing. If UV light cannot reach the inside, residual resin can remain reactive and weaken the part over time.
Pre-Slicing Checklist
- Functional surfaces identified and protected from supports.
- Large cross-sections angled to reduce suction.
- Islands detected and supported.
- Hollow volumes include accessible drainage holes.
- Minimum wall thickness matches resin capability.
- Sanding and finishing zones are anticipated.
Good orientation turns a risky print into a stable process. For technical parts, it belongs to the design phase as much as material selection does.
