Resin 3D Printing in Industry
A Fast Solution for Prototyping, Repairing, and On-Demand Production
Introduction
In 2026, additive manufacturing techniques are gaining traction in the industry. Filament-based 3D printers are already enabling companies—both small and large—to quickly and inexpensively prototype parts prior to mass production.
The applications are numerous, and there are many reasons to switch to additive manufacturing: a machine breakdown that halts production for several days or even weeks, replacement parts that are no longer available or come at exorbitant prices, or a need for testing with extreme precision that proves costly when outsourced...
Resin 3D printing offers an alternative: produce one or more parts locally in a matter of hours, test them, and then put them back into service.
In this article, learn how resin 3D printing works, why it’s gaining traction in the industrial sector, and how to gradually integrate it into a workshop. You’ll also find explanations of the available materials and their practical applications in a business setting.également des explications sur les matériaux existants et les usages applicables directement en entreprise.
What is resin 3D printing?
Resin 3D printing relies on the polymerization of a liquid resin that hardens when exposed to UV light. Using a digital file and specialized software, the part is prepared (sliced) into layers of 50 microns each and can be sent to the printer to form the part. The precision is higher than with an FDM printer and allows for the printing of multiple parts simultaneously. These qualities make the resin particularly well-suited for detailed parts, jigs, and prototypes that need to be tested quickly. Unlike filament, the resin allows for fine geometries and sharp edges, which facilitates assembly and functional.
How does it actually work?

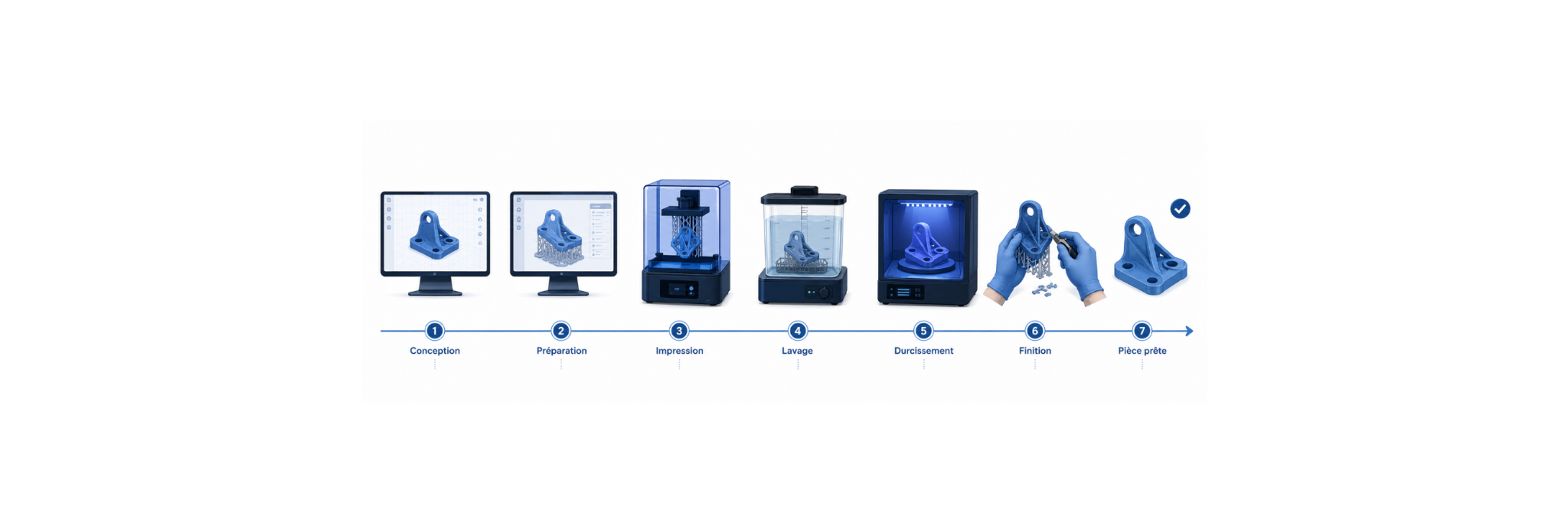

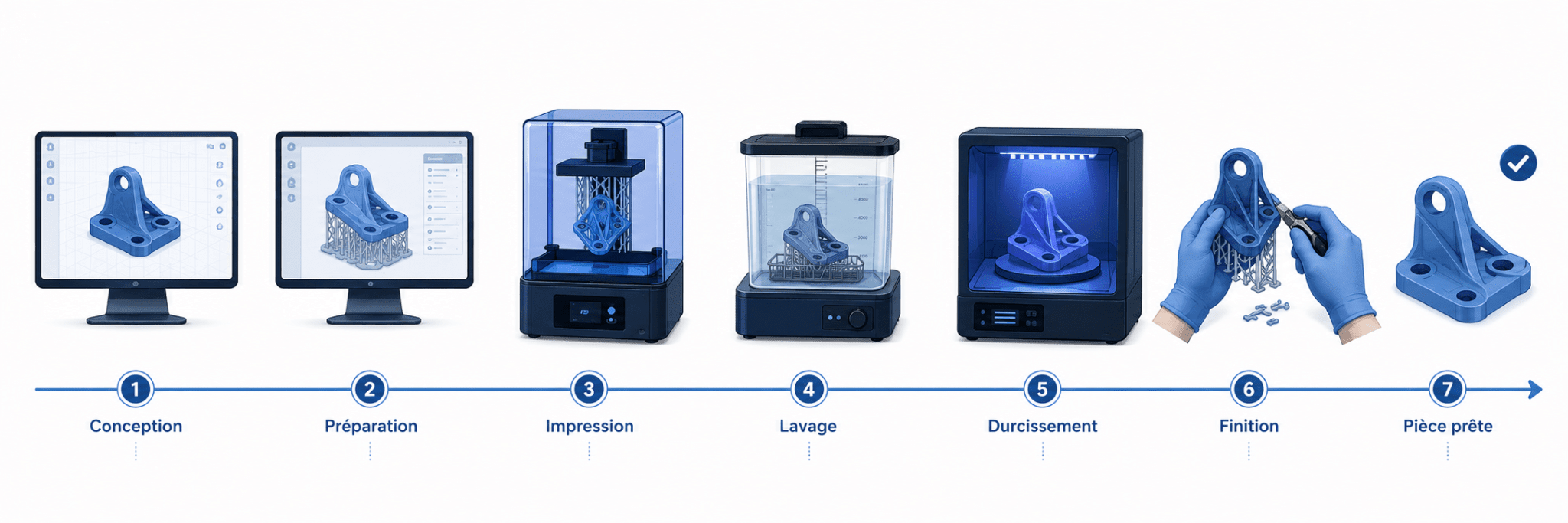

It all starts with a 3D file, either modeled by a technician or imported onto your computer. The file is prepared and then sent to the printer. After printing, the part must be cleaned (to remove uncured resin) and then post-processed in a curing chamber using UV light to complete the polymerization. These steps ensure mechanical properties and dimensional stability. Finally, the part is inspected and tested on a machine. The complete cycle for a small part can take anywhere from a few hours to a day, depending on the size and finishing operations.
Why this technology is of interest to the industry
3D resin offers three clear operational benefits.
Reactivity
Local production avoids supply delays that can bring a production line to a standstill
Precision
For fit-and-finish parts, prototypes, or housings, the surface finish and tolerances are often sufficient for rapid validation.
Cost Savings
For one-off parts or small production runs, resin printing eliminates the high cost of tooling.
.
These benefits are realized when the right parts are selected and simple, repeatable validation processes are implemented.
Which uses should be prioritized
Start with low-risk, high-impact applications: non-critical maintenance parts, assembly jigs, functional prototypes, and fitting parts. These applications quickly demonstrate the added value without requiring extensive validation. Initially, avoid parts subjected to high mechanical stress, very high temperatures, or aggressive contact with chemicals, unless the selected resin is specifically formulated for these conditions.
Choosing the right resin: how to match material and application
The right choice starts with the part’s primary load-bearing requirement. If the part must withstand impacts and handling, a “tough” resin that better withstands impact should be chosen. If the part is located near a heat source, a high-temperature resin is preferred to minimize warping.
For a jig or fixture that must maintain its exact dimensions, a rigid resin is the right choice. Finally, if the goal is to achieve behavior similar to that of an engineering plastic (to validate assembly or functionality), so-called “thermoplastic-like” resins or those formulated for the end use will be more suitable.
| Usage | Type of resin | Key characteristics |
|---|---|---|
| Support / Workpiece | Tough | Impact resistance |
| Installation template | Rigid | Dimensional stability |
| Object near a heat source | High temperature | Heat resistance |
| Functional prototype | Thermoplastic-like | Behavior similar to that of injection-molded plastic |
Practical examples and recommended resins
Example 1 — Broken hood support replaced as an emergency repair:
Use a “tough” resin. This type of resin offers better resistance to impact and repeated handling, which avoids the need to recommend or assemble a part that would crack upon the first adjustment.
Example 2 — Assembly jig for precise assembly:
Choose a rigid resin. For a jig, dimensional stability is paramount; a rigid resin minimizes flexing and ensures reliable alignment during assembly.
Example 3 — Parts exposed to localized heat (instrumentation, temporary inserts):
Choose a high-temperature resin. These formulations maintain their dimensions and properties at elevated temperatures, reducing the risk of warping during use.
Example 4 — Functional prototype for snap-fit testing:
Use a “thermoplastic-like” resin. It better replicates the feel and behavior of injection-molded plastic, which is useful for validating ergonomics and assembly before mass production.
Setting up a 3D resin printing workshop: a step-by-step guide
Start by identifying a few simple, measurable candidate parts. Prototypes, jigs, and repair parts are good places to start. Document the need, print an initial batch, test under real-world conditions, and record any discrepancies. Measure the time saved and direct costs. Next, establish clear rules: who manages the files, who approves the part, what environmental conditions are required, and what PPE is needed. Finally, formalize material traceability and post-processing procedures. This step-by-step approach minimizes risks and allows you to integrate 3D printing as a workshop tool, not as a standalone gadget.
Points to Consider and Limitations
Success depends on material selection, process control, and post-processing. Inadequate cleaning or incomplete post-curing can quickly degrade a part’s performance. Some resins have limitations when exposed to chemical attack or repeated thermal cycles. Finally, regulations and safety (ventilation, gloves, resin storage) are serious matters: procedures and basic training for the team are required.
Conclusion and Next Steps
Resin 3D printing is a practical way to improve responsiveness and flexibility in many industrial applications. By starting with simple cases, matching the right material to the right function, and establishing a few validation steps, a company can achieve tangible results in just a few weeks.
If you have a specific part in mind, send us a photo along with a description of its intended use (mechanical stresses, temperature, expected volume); we can help you determine the most suitable resin and a preliminary testing method.
