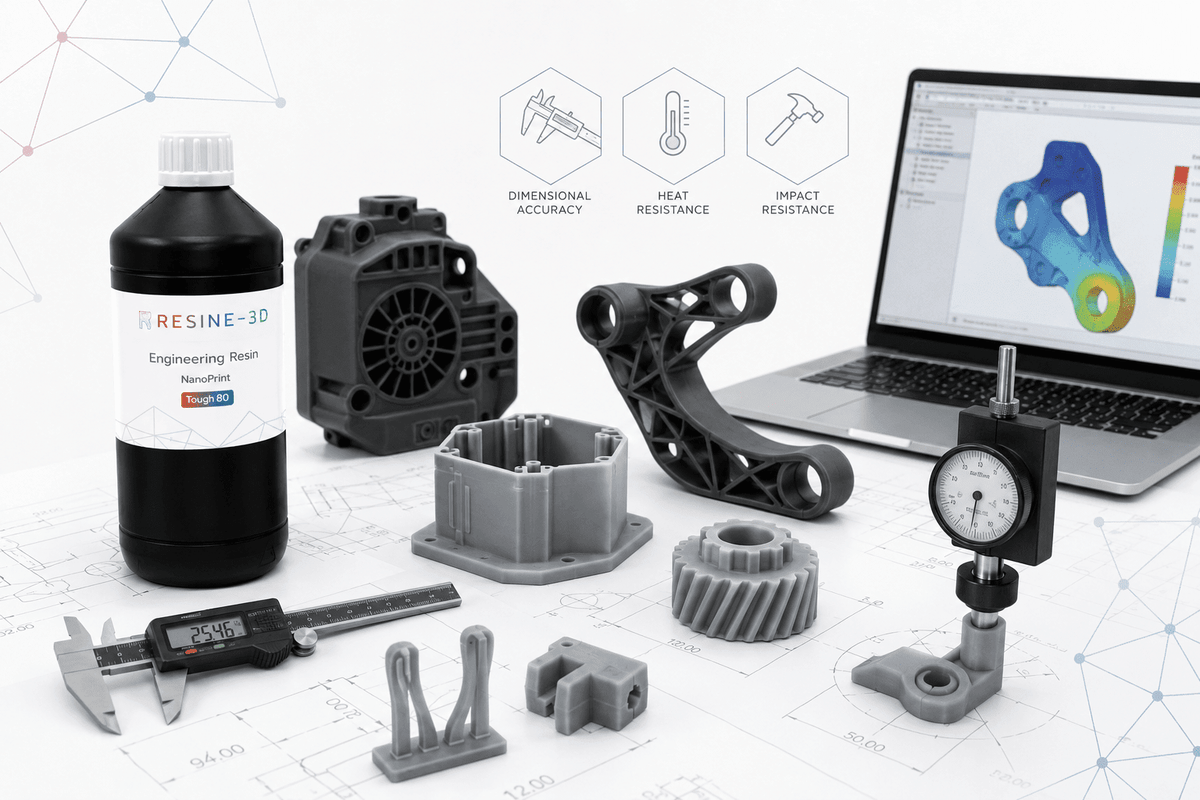

Choosing Resin for Engineering and Functional Prototyping
A prototype should do more than look like the final part. In engineering and product development, prototypes often need to test fit, function, durability, thermal behavior, assembly constraints, and design intent.
Engineering resin for functional prototyping
Engineering resin selection affects dimensional accuracy, rigidity, toughness, heat behavior, surface finish, and repeatability. Choosing the wrong resin can make a prototype misleading, even if the print looks visually correct.
Functional prototypes need application-specific materials
A snap-fit test, a housing validation, a jig, a fixture, a heat-exposed part, and an impact-resistant prototype may each need different material properties. Resin choice should be connected to the question the prototype is meant to answer.
3D printing resin for product development and validation
Professional engineering teams use resin 3D printing to accelerate iteration. The material must allow reliable comparison between design versions, not introduce uncontrolled variation into the test.
Controlling variables in technical resin printing
Important variables include build orientation, wall thickness, support placement, exposure settings, post-cure cycle, and the mechanical direction of load. These factors can influence how a printed prototype behaves during testing.
Engineering blend resins for technical projects
Résine-3D engineering blend resins are designed for demanding users who need dependable materials for technical parts, functional prototypes, and design validation.
From visual prototype to functional test part
When the goal is functional validation, users should evaluate resin performance beyond appearance. Strength, stiffness, temperature resistance, dimensional tolerance, and finishing behavior can all be relevant.
Professional additive manufacturing materials for industry
Industrial users need materials that support repeatable workflows and clear internal standards. A well-chosen engineering resin helps reduce print failures, improve communication between teams, and speed up decision-making.
Consistency creates productivity
When every iteration matters, resin consistency becomes a productivity advantage. Reliable materials help engineers focus on design decisions instead of troubleshooting avoidable process variation.
For engineering teams, resin performance should be evaluated together with the printer, curing workflow, and application requirements. The Machines-3D catalog is a useful reference point for comparing equipment around professional additive manufacturing projects.
Technical FAQ: engineering and functional prototyping
Which properties matter for functional prototypes?
Key properties include tensile strength, elongation, flexural modulus, impact behavior, heat resistance, surface finish, dimensional stability and resistance to repeated handling. A prototype used for visual validation does not need the same resin as a part used for fit testing or functional trials.
Why can a rigid resin fail in real testing?
High stiffness does not always mean high toughness. Some rigid materials can be brittle under impact or thin-wall stress. For engineering work, the resin must be selected according to the load case: bending, compression, snap-fit, heat exposure, abrasion or assembly checks.
How should engineers test resin parts?
Print test coupons and real geometry. Compare orientation effects, wall thickness, post-curing cycles and repeated load behavior. If the part will be assembled with screws, clips or inserts, test those operations before committing to a batch.
What can the product range solve?
A structured resin range helps separate visual prototypes, tougher engineering parts, transparent parts and dental applications. This reduces trial-and-error and makes it easier to choose a material for the actual function of the part.
